World’s Most Compact Underwater Monitor

DNC-5A  5.5 inch Underwater External Monitor, HDMI, SDI monitor, sealed monitor with custom bulkhead connector

If you are interested in creating high-quality content, we have a great tool that will immediately change your underwater filming/shooting perception.

Dive and See is existed to introduce you our development – DNC-5A.

Monitor’s Compactness / Screen Resolution

At the moment, DNC-5A is the world’s most compact external monitor in underwater market. Our monitor has a great Full HD screen resolution – 1920×1080. According to our customers, such compactness allows divers to implement a convenient transportation. Additionally, due to the monitor’s compactness our monitor can be submerged in water for a distance more than 150 meters, which is very unique for underwater market. Furthermore, our monitor has the brightest screen on the underwater market – 450 nits.

Our monitor has 6 different configurations, check them out and find the one which perfectly covers your needs:

DNC-5A(H1) – HDMI input only
DNC-5A(H2) – HDMI input, HDMI live streaming video out connector
DNC-5A(HS) – HDMI input, SDI live streaming video out connector
DNC-5A(S1) – SDI input only
DNC-5A(S2) – SDI input, SDI live streaming video out connector
DNC-5A(SH) – SDI input, HDMI live streaming video out connector

If you are interested in purchasing our product, check out the pricing list in our main website: https://www.diveandsee.com/products/monitors-and-gopro/DNC-5Aunderwater-full-HD-HDMI-SDI-Video-Monitor-Live-Video-Waveform-functions

Let’s discuss the advantages of DNC-5A.

Advantages

When developing housing for DNC-5A, our engineers were focused on strengthening a housing for the monitor. The goal was to create a robust housing with easy access to all monitor’s settings. Our monitor is completely sealed – it makes it even more safe to use. Long-lasting experience in the underwater market has shown that openable housings are less secure due to the ingress of any foreign object such as hair, water, sand, small pieces of napkins and etc. Our monitor has a strong, embedded battery, which is easy to charge using an external battery charger. One battery charge is good enough for 4 hours of continuous use. To charge DNC-5A you will need to unscrew the protective cap and simply insert charging cable. There are no worries if your protective cap was lost, because we decided to insert a water block inside monitor’s charging port.

Focus Peaking

Our monitor has 4 different focus peaking options.

Focus peaking is a focusing aid in live preview or electronic viewfinders on digital cameras that places a red (green, blue, white) in-focus edges (contours) within an image using an edge detect filter.

The operator adjusts the focus control until the red outlines on the desired area are well visible, indicating optimal focus. For the best results, be sure the subject is properly exposed.
Available Four colors – Red, Green, Blue, White.

Power Button Options

DNC-5A has two shut-down power button options. The first option is a basic «ON/OFF» button, in other words, «standby switch». The second option is a security switch, or so-called «kill switch».

Kill switch is a mechanism used to shut down or disable the monitor. The Kill Switch button design protects the monitor from self-activation during transportation.

DNC-5A  5.5 inch Underwater External Monitor, HDMI, SDI monitor, sealed monitor with custom bulkhead connector made in use

Mounting Capability

Furthermore, our monitor’s setup includes cold shoe ball mount, allowing the underwater monitor to be tilted and rotated, with 1ʺ ball on the end. Binding T-slot on the bottom allows convenient connection with underwater housings and arms.

Bulkhead Connector

Since December 2019, the company «Dive and See» decided to improve overall safety of DNC-5A, so company provides a water block inside the monitor’s connector. Water block prevents water penetration inside your device. By the way, we have bulkhead connectors (fittings) for all brands of the housings. If you are interested in choosing a bulkhead, check out our website: diveandsee.com / Products / Connectors. Custom length and other HDMI connector types are available.

AirLock Vacuum System (Bulkhead connector)

Bulkhead connector comes with the built-in water block. Water block will keep the vacuum inside of the housing when using the AirLock Vacuum System.

Sunshade / Monitor Hood

Also, DNC-5A setup includes detachable sunshade, in other words, monitor hood. Removable Sun hood greatly eliminates glare in shallow water, outdoor viewing and protects delicate monitors from the elements. Constructed of durable plastic can stand up to the rigors of use in the field. Spare screws include the monitor kit. Monitor hood is easy to install.

DNC-5A  5.5 inch Underwater External Monitor, HDMI, SDI monitor, sealed monitor with custom bulkhead connector, underwater monitor with sun shade

New 4K External Underwater 7” Monitor – DNC-7B

DNC-7B  7 inch Underwater External Monitor, 4k HDMI, SDI monitor, sealed monitor with custom bulkhead connector
4K External Underwater 7” Monitor – DNC-7B

Dive and See is excited about the launch of our newest development – External Underwater 7’’ Monitor.
Let’s get straight to the point.

4k Resolution

Allowance to support 4K resolution is one of the biggest advantages of our unique development – DNC-7B. At the moment, we are the first company in the underwater equipment business that released a 4K External Underwater Monitor. Also, we think it’s worth to mention that our monitor is not a recorder. Moreover, our monitor has 4 different configurations, check them out and find the one which perfectly covers your needs:

DNC-7B(H1) – HDMI input only
DNC-7B(H2) – HDMI input, HDMI live streaming video out connector
DNC-7B(S1) – SDI input only
DNC-7B(S2) – SDI input, SDI live streaming video out connector

If you are interested in purchasing our product, check out the price list on our main website: https://www.diveandsee.com/dnc-7b-7-underwater-external-monitor-4k-hdmi-sdi-monitor-anamorphic-mode
Let’s discuss the advantages of DNC-7B

DNC-7B  7 inch Underwater External Monitor, 4k HDMI, SDI monitor, diving monitor, sealed monitor with custom bulkhead connector

Advantages of DNC-7B

When developing the housing for DNC-7B, our engineers were focused on strengthening housing for the monitor. The goal was to create a robust housing with easy access to all monitor’s settings. Our monitor is completely sealed – it makes it even more safe to use. Long-lasting experience in the underwater market has shown that openable housing is less secure due to the ingress of any foreign object such as hair, water, sand, small pieces of napkins and etc. Our monitor has a strong, embedded battery, which is easy to charge using an external battery charger. One battery charge is good enough for 6 hours and 30 min of continuous use.

Power Button Options

DNC-7B has two shot-down power button options. The first option is a basic «ON/OFF» button, in other words, «standby switch». The second option is a security switch, or so-called «kill switch».
Kill switch is a mechanism used to shut down or disable the monitor. The Kill Switch button design protects the monitor from self-activation during transportation.

Water Block

To charge DNC-7B you will need to unscrew the protective cap and simply insert charging cable. There are no worries if your protective cap was lost, because we decided to insert a water block inside monitor’s charging port.

Aspect Ratio/ Anamorphic Mode

The aspect ratio of DNC-7B is (16:10). Such an aspect ratio helps our monitors’ users to enjoy the main menu’s interface without any cropping, which happens with (16:9). Such an aspect ratio perfectly works with anamorphic mode, which is one of the advanced features of our monitor.

Anamorphic widescreen is a process by which a comparatively wide widescreen image is horizontally compressed to fit into a storage medium with a narrower aspect ratio, reducing the horizontal resolution of the image while keeping its full original vertical resolution.

Mounting Capability

Furthermore, our monitor’s setup includes cold shoe ball mount, allowing the underwater monitor to be tilted and rotated, with 1″ ball on the end. Binding T-slots on the top and bottom allow convenient connection with underwater housings and arms. It is useful for lighting or an external microphone.

Bulkhead Connector

We are worried about the overall safety of DNC-7B, so we provide a water block inside the bulkhead connector and the monitor’s connector. By the way, we have bulkhead connectors (fittings) for all brands of the housings. If you are interested in choosing a bulkhead, check out our website: diveandsee.com / Products / Connectors. Custom length and other HDMI connector types are available.

DNC-7B  7 inch Underwater External Monitor, 4k HDMI, SDI monitor, sealed monitor with custom bulkhead connector, underwater monitor with sun shade

Sunshade/Monitor Hood

Also, DNC-7B setup includes detachable sunshade, in other words, monitor hood. Removable Sun hood greatly eliminates glare in shallow water, outdoor viewing and protects delicate monitors from the elements. Constructed of durable plastic can stand up to the rigors of use in the field. Spare screws include the monitor kit. Monitor hood is easy to install. Moreover, the design of the monitor was purposely created for positive buoyancy.

Buoyancy

Positive buoyancy occurs when an object is lighter than the fluid it displaces, in other words, a positive buoyancy is when something is less dense that the water around it. This will make the object float.

Additionally, regarding the monitor’s design, our engineers decided to create a special shape in the lower right corner of the monitor, it will help divers to prevent a common issue – false power activation.

DNC-1044 Underwater Cat6 Ethernet Cable

Depth Rating of the DNC-1044 cable: 90 meters
Strength: Maximum recommended pulling tension – 400 N
The material of cable construction: Jacket Polyethylene (PE), OD-8mm. The outer shell is very strong and robust against mechanical stress.
The material of connector: Nickel-plated Marine grade brass or Marine grade aluminum with Hard-Anodized coating

Application:
*Connecting any CAT6 applications to the computer, router. hub, Network, distribute data or video
4K/HD Camera such an AJA RovoCam .

*Transmit UltraHD (3840×2160) at 25/29.97 fps
*Gigabit Ethernet, Power over Ethernet (PoE) compatible
*Supports IP Cameras
*GIG-E Ethernet – RED Epic Dragon, allows for external metadata ingest.
*FTP Transfer – Using terminal for wired LAN connection Sony Alpha a9, Nikon D4, you can automatically transfer each image (RAW, JPEG or both) to the FTP server as you shoot or transfer images in batches after shooting.
*EOS Utility – use EOS Utility to capture, view, and download images remotely.
*Media Server – view images on a DLNA – compatible TV or other devices.
*WFT Server – use a web browser to capture, view, and download images remotely.
*Remote Capture – Live View shooting images (not movies).
*Camera Control – with Canon EOS 1DX Mark II (Release the button, Manual adjust focus, Shooting functions, and much more).
*Underwater DNC-1044 cable comes with 4-Pair 23 AWG Cat6 solid conductors, fitted with a normal male RJ-45 connector on the end. Custom length and other connector types are available (LEMO). The cable works with Dive And See bulkhead connector DNC-2025  and DNC-2031. Bulkhead connector sold separately

?

Custom made DNC-GP12 setup for a Car Racing competition

We got a specific request, to make a custom set based on GoPro Hero 7 camera for Car Racing competition.

The set needs to be weatherproof

With very thin cables and wires

With WiFi cable

With HDMI 4K support resolution

With Power cable

To do this order, we modified our DNC-GP12 set, added requested cables and connectors and successfully made setup per customer request.

dive and see custom made set Hero7 for car raicing with HDMI Live Streaming Power and WiFi_DNC-GP12 DNC-GP12 with Power WiFi HDMI_for car racing application made by Dive And See

Hero7 for Sewer Inspection Video live feed

Custom setup based on GoPro Hero7 camera and waterproof housing was developed to use for Sewer Inspection.

Hero7 Video for Sewer Inspection live feed Hero7 waterproof housing LED video light underwater power bank underwater power supply with sony batteries

This setup allows having a Live video at a surface monitor, so a customer can watch the cleaning operations in the pit and make them more efficient. The maximum available HDMI resolution of the Video Live stream can be 1920x1080x60 fps.
The HDMI signal easily can be recorded on the computer hard disk with amazing High definition resolution of the signal.
The battery pack consists of two rechargeable Sony F970 batteries.
The waterproof battery pack feeds the powerfull LED Video light and camera.
Video Stream from the camera can send to the surface over the cable or connect to Video transmitter.

Proposal system ?

Video Monitor DNC-7A and Bulkhead connector for Recsea RVH-AXP35 LCD Underwater Housing for Sony FDR-AX30, AX33, AXP33 & AXP35 4K Camcorders

We did Custom bulkhead connector 1/2-20 for 0.5″ port. This bulkhead fits the Recsea RVH-AXP35 LCD Underwater Housing for Sony FDR-AX30, AX33, AXP33 & AXP35 4K Camcorders.

INSTALLATION

Bulkhead comes with security nut, which you install after inserting into the RecSea housing.
Custom 90 decrees Micro HDMI connector perfectly fit the Sony camera (Micro HDMI port). Bulkhead connector compatible with any Dive And See HDMI video monitors.

DNC-7A video monitor for Recsea RVH-AXP35 LCD Underwater Housing  Micro HDMI Bulkhead connector for Sony FDR-AX53 Rec Sea RVH-AX55-LCD housing

Dive-And-See-video-monitor-Recsea-RVH-AXP35-LCD-underwater-housing-for-Sony-FDR-AX30-AX33-AXP33 Recsea-RVH-AXP35-LCD-underwater-housing-for-Sony-FDR-AX30-AX33-AXP33

Recsea Underwater Housing RVH-AXP35-LCD

Full size HDMI bulkhead connector for Aquatica, Seacam, Nauticam housings

We have released a new version of custom made Full-size HDMI bulkhead connector for underwater housings such an Aquatica, Seacam, Nauticam, Sea&Sea.

The new version of this connector allowed to pass through 16 mm port of the housing Full-size custom made HDMI connector. As result – we eliminate one extra connection inside the housing and made the system more reliable.

Nauticam GH5 with Dive And See bulkhead connector full size HDMI Nauticam GH5 with Dive And See bulkhead connector Nauticam GH5 with Dive And See full size HDMI bulkhead connector



Bulkhead connectors come with a built-in water block. Water block will protect keep the vacuum inside of the housing when using the AirLock Vacuum System. Also protect the housing against penetration of the water, if something happening with external cable or connection between the cable and bulkhead connector.

Seacam and Nauticam GH5 with Dive And See full size HDMI M16 bulkhead connector_1

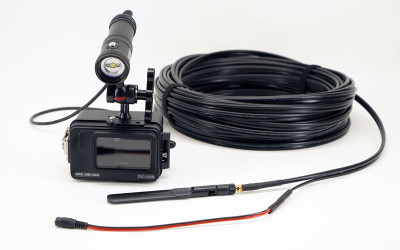

Waterproof case for GoPro Hero7/6/5 with LED light for Live video HDMI streaming

We have some fantastic news for you. Now you can use GoPro Hero7/6/5 cameras for HDMI live streaming.

Advantages

Our GoPro setup gives you the opportunity to record a high-quality 4K video on the memory card of the GoPro Hero7/6/5 camera.

DNC-GP10 allows streaming live video above the surface for watching on Big Screen or recording the best possible High Definition 3840×2160 30Hz HDMI signal from GoPro HERO5 Action Camera. Hero7 does not generate a 4K output signal from the HDMI connector. A maximum available signal is 1080p60.

  • Live streaming on YouTube is easy with DNC-GP10
  • Record high-quality 4K video on the memory card of GoPro Hero7/6/5 camera
  • There is no more worry about running out of power during an underwater shoot. External Power cable allows you to power the GoPro camera
  • Waterproof Housing supports the best underwater camera GoPro Models: GoPro HERO7 Black, GoPro HERO6 Black Ultra HD Action Camera ‑ 4K
  • A perfect solution for YouTube streaming, boat bottom inspection, shallow sea culture construction inspection, aquarium, swimming pool competitions, Home Theater Projectors.

For more information, check out our website:  http://www.diveandsee.com/products/underwater-monitors/dnc-gp10

  • GoPro Hero7 dnc-gp10 with LED underwater light and live view HDMI output cable GoPro Hero7 dnc-gp10 with LED underwater light_set GoPro Hero7 with external LED Video light GoPro Hero7 with HDMI Live view and external LED Video light

HDMI / Power cable

The waterproof case comes with permanently attaching two cables, 10 meters / 32 feet long.
The first cable is HDMI. Maximum available length – 10 meters / 32 feet (before any drop-off in signal or quality is detected). Cable has a regular HDMI connector (type A) on the surface/top end.
The second cable sends the power from the surface to the GoPro camera. Cable has a standard female 2.1mm x 5.5mm Barrel plug in the end.
The Power cable feeds the GoPro camera from the surface. You can use your own power source – voltage ranging from 7.4V to 24V (power source need to be at least 0.8A)

Power supply

We are providing two power sources: 12V power supply (110/220) and external battery plate (the concept is similar to power bank) for SONY L-Series F970 battery, which gives you extended usage time.
Furthermore, when you are using an external power source, you don’t need to use the original GoPro battery.

Detachable LED

Quickly Detachable LED light with built-in battery. One charge is good for 6 hours of Non-Stop usage.
USB cable for the charging is included in the set. The color temperature of the light is 6000K. No hot spot, wide-angle bim, great coverage. This light generates Max 400 Lumens light and offers 2 power settings and 1 SOS settings controlled by a reliable push-button. Depth rating – 45 meters
